Product Description

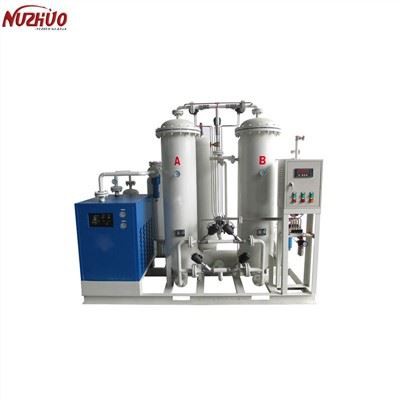

Nitrogen Manufacturing Plant operating principle
Nitrogen Manufacturing Plant: Based on the principle of Pressure Swing Adsorption (PSA), high - quality carbon molecular sieves are employed as the adsorbent. Under a specific pressure, due to the kinetic effect, there exists a remarkable difference in the diffusion rates of oxygen and nitrogen on the carbon molecular sieve. By leveraging the phenomenon that oxygen molecules are extensively adsorbed by the carbon molecular sieve while nitrogen molecules get enriched in the gas phase, the separation of oxygen and nitrogen is accomplished.
Since the adsorption capacity of carbon molecular sieves for oxygen varies distinctly with changes in pressure, reducing the pressure enables the desorption of the oxygen molecules adsorbed by the carbon molecular sieve. This process regenerates the carbon molecular sieve, allowing it to be reused in repeated cycles.
A two - adsorption - tower process is adopted: one tower undertakes adsorption for nitrogen production, and the other carries out desorption and regeneration. The two towers alternate in a cyclic manner, continuously outputting high - quality nitrogen.
Nitrogen Manufacturing Plant: Nitrogen is normally used as protective gas or atmosphere gas for reduction and carb uretor. Under-circumstance of room. temperature and high pressure, oxygen and nitrog en are separated by different-diffusion rate in CMS.Nitrogen purity and output volum e is adjustable to meet customer's requirements.
Main Comppnents:
1) Air compressor famous brand such as the Atlas Copco, Ingersoll Rand can be available to match our PSA nitrogen generators.Also Taiwan compressor come from brand Hanbell it have stronger capacity and best performance.
2) Refrigeration dryer we use Hanzhou BOLY .
3) Filters the elements with brand of Hankison.
4) Core equipment nitrogen generator have stronger PSA Features.
5) Electric parts PLC is made of SENMESIN and Delixi.
6) Piping system welding process be made of ourselves to handle well.
7 Steel structure reasonable and consistence.
8) Main consumables such as CMS which we use world famous brand Japan the life span of the CMS is about 5 to 8 years.
9) Pneumatic valve is made of Germany Burkert.
Company Introduction
Hangzhou Nuzhuo Technology Group Co,.LTD
Hangzhou Nuzhuo Technology Group Co., Ltd. is located in Hangzhou,China. The transportation is convenient, where near Hangxinjing High-speed Expressway,Hangzhou Xiaoshan International Airport, Shanghai Pudong Airport.
NUZHUO Group was established in 1998, based on the air separation industry for more than 20 years, our company has more than 14,000 square meters of modern standard workshops and 1500 square meters of sales headquarters. Our company always adheres to the business philosophy of "integrity, cooperation, and win-win", takes the development path of technology, diversification,scale, and develops toward high-tech industrialization. Our company has passed the ISO9001 quality system certification, CE certificate, and won the "contract-honoring and trustworthy Unit" and the company are listed as the key enterprise of technological innovation in Zhejiang Province's high-tech industry.
Credential
