Product Name |
Cryogenic air separation unit |
Oxygen Purity |
99.6%-99.8% |
|
|
Production |
50-30000N3/h |
Nitrogen Purity |
99.9% - 99.999% |
|
|
Brand |
NUZHUO |
Model |
NZDONAR |
|
|
Main Part |
Air compressor system, Pre-cooling System, Air Purification System, Fractionating Column System, Turbo Expander System, Filling System, Instrument and Electric Control System |
|||
|
Application Field |
Hospital & Industrial Use |
|||
LARGE CAPACITY CRYOGENIC AIR SEPARATION PLANT
NUZHUO has always been aiming at the international markets, and making great efforts in developing ASU General Contracting and Investment exportation. HANGZHOU NUZHUO is one of the leading enterprises in gas producing industry in scientific research, design, consultation. service, integrated solutions, manufacture, marketing, completion of engineering project, equipment installation and commissioning etc.The ASU of NUZHUO, is capable of supplying Cryogenic Air Separation Plants all scales of ASU from 50 Nm3/h to 30,000 Nm3/h as one single unit. Since 1998, we have produced more than 20 sets of large & medium size ASUs, in which, the largest capacity of oxygen is 12,000 Nm3 per hour. In addition to producing of oxygen, nitrogen and argon in the large air separation plant, satisfying customers' various demands.
Air Separation Plant
We are a leading manufacturer and supplier of Premium Quality Cryogenic Air Separation Plants, Cryogenic ASU of all sizes ranging from 50 m3/hour to 30,000 m3/hour including Cryogenic Tonnage Oxygen and Nitrogen Plants for Industrial and medical gas generation. We are manufacturing with the brand name "NUZHUO" established 1998 as our quality meets THE HIGHEST QUALITY CE international specification and standards. Our quality has been passed by most of the agencies and SGS (society General De Surveillance) for export.
Special Features of ASU Plant
A few of the latest technological features incorporated into the Oxygen & Nitrogen plants are listed below.
Purity of Oxygen produced from all plants is minimum 99.7% and Nitrogen Purity can be available up to 1-10 PPM (Depending upon requirement of the customer).
All plants use "Oil free" rotary screw /centrifugal oil compressor working between 6-13 BAR.
All plants incorporate Aluminum Brazed exchangers and packed columns for high efficiency.
Turbo expanders (GAS Bearing) for trouble free operation.
All plants can supplied with automatic PLC control.
Engineering support along with complete quality control is provided by our company.
We provide qualified engineers for Supervision, Installation and start up of all our plants as well as training of manpower at customers' site.
Very low power consumption with proven performance and virtually easy maintenance required for the machines.
100% reliability for oxygen gas quality for industrial & hospital use.
Applications
We serve customers in a wide range of industries. Our accumulated practical experience allows us to design and deliver the perfect fit to meet your individual needs based on your industry recommendations. Our reference range includes:
Metals
• Iron and steel
Energy and Gasification
• IGCC, biomass and coal gasification, oxyfuel, natural gas, synthetic fuel, partial oxidation, coal-to-liquid, gas-to-liquid
Chemicals
• Ethylene oxide, NH₃ synthesis, petrochemicals
CONFIGURATION OF ASU PLANT
|
Air compressor system Imported centrifugal air compressor, high efficiency, low consumption, stable and reliable operation, can choose imported Atlas brand.
|
|
Air pre-cooling unit The air is pre-cooled to 5-10ºC in the pre-cooling unit, and the moisture is separated. The original imported screw refrigeration compressor and the air-conditioning unit combined with all imported refrigeration components are equipped with a water separator, manual and imported automatic drains to drain water regularly.
|
|

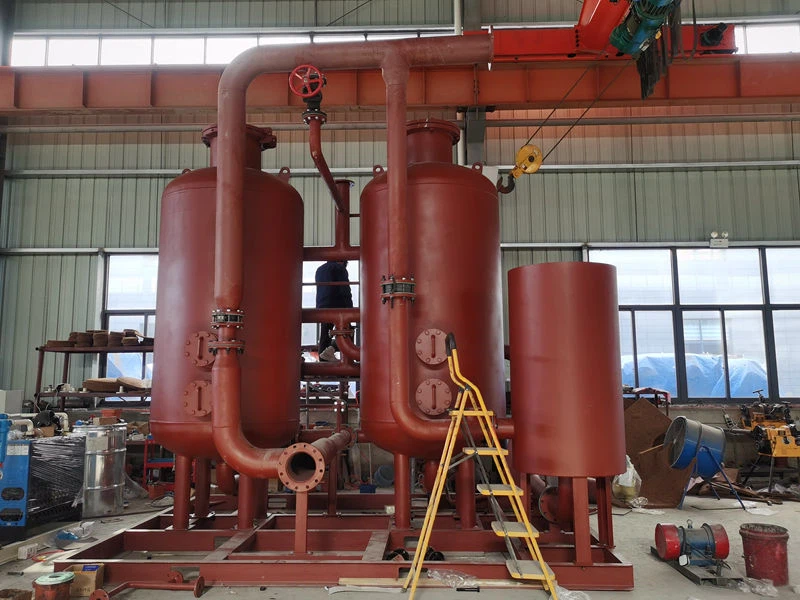

Air purification system Removing the remained moisture, carbon dioxide and hydrocarbons of compressed air in the molecular sieve purifier. The purifier adopts a vertical single-layer bed with simple and reliable structure and low resistance loss; built-in filter, blowing off and purifier regeneration at the same time; high-efficiency electric heater ensures complete regeneration of molecular sieve.
|
|
Fractionator system (cold box) The operation is simple, quick and simple. Adopt aluminum plate-fin heat exchanger, aluminum convection sieve plate tower, the entire fractionation tower equipment pipeline adopts argon arc welding, the tower body and main pipeline in the cold box are made of high-strength aluminum alloy or stainless steel to increase the strength , Reduce the torsion damage of the pipeline. The equipment brackets, pipes and valve brackets in the cold box shall be made of stainless steel or aluminum alloy. The cold box structure guarantees the overall strength and requirements of seismic and wind resistance, and guarantees the load-bearing capacity of the cold box. The cold valve and pipeline in the cold box All connections are welded, and flange connections are avoided.
|
|
Turbo Expander The air expands and cools in the turbo expander and provides the cooling capacity required by the device.The turbo expander adopts gas bearing, which is simple and reliable, easy to operate, and high efficiency. The cold box of the expander is set separately for easy maintenance. |
|
Instrument and Electric Control System Siemens imported brand, fully automatic production system, digital control system |
|
Equipment layout drawing (according to civil engineering design), process piping design drawings, instrument electrical design drawings, etc. |
IF YOU HAVE ANY INTERSTS TO KNOW MORE INFORMATION, CONTACT US:
Whatsapp/Tel: 0086-18069835230
Mail: Lyan.ji@hznuzhuo.com
|
MODEL |
PRODUCT |
PRODUCTION ( Nm3/h) |
Purity |
|
NZDO |
Oxygen |
50 to 3000 |
99.6% - 99.8% |
|
NZDN |
Nitrogen, Liquid nitrogen |
50 to 3000 |
99.9%-99.999% |
|
NZDON |
Oxygen, Nitrogen, Liquid Oxygen, Liquid Nitrogen |
50 to 3000 |
Oxygen:99.6% - 99.8% Nitrogen: 99.9%-99.999% |
|
NZDONAR |
Oxygen, Nitrogen, Argon Liquid Oxygen, Liquid Nitrogen, Liquid Argon |
O2, N2 : 50 to 3000 Ar : 5 to 90 |
Oxygen:99.6% - 99.8% Nitrogen: 99.9%-99.999% Argon: 1.5ppm O2+4ppm N2 |
|
No |
MAIN PART |
FUNCTION |
||
|
1 |
Air Compression System |
Air be compressed to 0.5-0.7 Mpa by air compressor, Imported centrifugal air compressor, high efficiency, low consumption, stable and reliable operation |
||
|
2 |
Pre-cooling System |
The air is pre-cooled to 5-10ºC in the pre-cooling unit, and the moisture is separated. The original imported screw refrigeration compressor and the air-conditioning unit combined with all imported refrigeration components are equipped with a water separator, manual and imported automatic drains to drain water regularly. |
||
|
3 |
Air Purification System |
Removing the remained moisture, carbon dioxide and hydrocarbons of compressed air in the molecular sieve purifier. The purifier adopts a vertical single-layer bed with simple and reliable structure and low resistance loss; built-in filter, blowing off and purifier regeneration at the same time; high-efficiency electric heater ensures complete regeneration of molecular sieve |
||
|
4 |
Fractionating Column System (Cold Box) |
The heating, cooling, liquid accumulation and purification of the fractionating tower can be completed in one way, and the operation is simple, quick and easy. Adopt aluminum plate-fin heat exchanger, aluminum convection sieve plate tower, the entire fractionating tower equipment pipeline adopts argon arc welding, the tower body and main pipeline in the cold box are made of high-strength aluminum alloy or stainless steel to increase the strength , Reduce the torsion damage of the pipeline. The equipment brackets, pipes and valve brackets in the cold box shall be made of stainless steel or aluminum alloy. The cold box is insulated with pearl sand and slag wool to ensure that the loss of cold capacity is minimized. The cold box structure guarantees the overall strength and the requirements of anti-seismic and wind resistance, and guarantees the load-bearing capacity of the cold box. When the cold box is running, it is equipped with airtight protection and safety devices. The main equipment in the cold box is equipped with electrostatic grounding. The cold valve and pipeline in the cold box all connections are welded, and flange connections are avoided. |
||
|
5 |
Turbo Expander System |
The air expands and cools in the turbo expander and provides the cooling capacity required by the device.The turbo expander adopts gas bearing, which is simple and reliable, easy to operate, and high efficiency. The cold box of the expander is set separately for easy maintenance. |
||
|
6 |
Heat Exchange System |
The air exchanges heat with the refluxing oxygen, nitrogen, and dirty nitrogen in the heat exchanger of the fractionation tower, and is cooled close to the liquefaction temperature, and the refluxed oxygen, nitrogen, and dirty nitrogen are repeatedly heat exchanged to the ambient temperature; |
||
|
6 |
Filling System |
Single gas production: Internal compression process ( Cryogenic liquid pump, High pressure vaporizer, Filling manifold). Multi-gas production: External compression process (Oxygen and nitrogen and argon booster, Filling manifold). |
||
|
7 |
Instrument and Electric Control System |
Siemens imported brand, Fully automatic production system, Digital control system |
||
|
8 |
Others |
Equipment layout drawing (according to civil engineering design), Process pipe design drawings, Instrument electrical design drawings, etc. |
||
